Biogas & Multi-Gas Analyzer
Model: KF-BIO-2025 / KF-MULTIGAS-2025

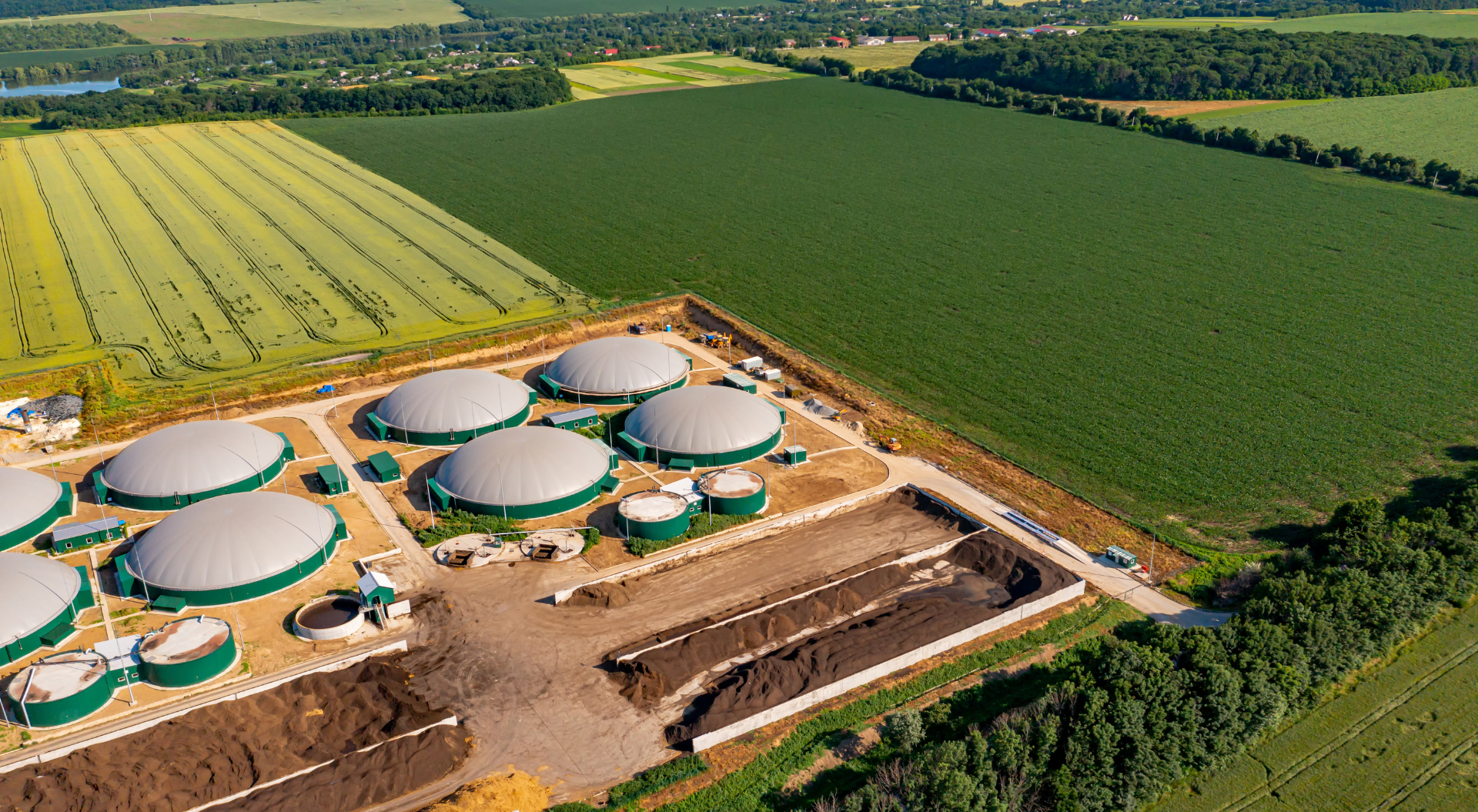

Kimpex Flow Pvt Ltd offers advanced Biogas and Multi-Gas Analyzers designed to deliver accurate, real-time gas composition analysis for industrial, agricultural, and environmental applications. Whether you're managing a biogas plant, landfill site, wastewater treatment facility, or cogeneration system, our analyzers provide the data you need to optimize performance and ensure safety.
Key Features
- Multi-Component Detection: Measures critical gases including Methane (CH₄), Carbon Dioxide (CO₂), Oxygen (O₂), Hydrogen Sulfide (H₂S), Hydrogen (H₂), Ammonia (NH3), Carbon Monoxide (CO) & Dew Point
- High Accuracy Sensors: Equipped with NDIR and Electrochemical sensors for reliable readings across varying concentrations.
- Real-Time Monitoring: Continuous data logging and display for process control and emissions compliance.

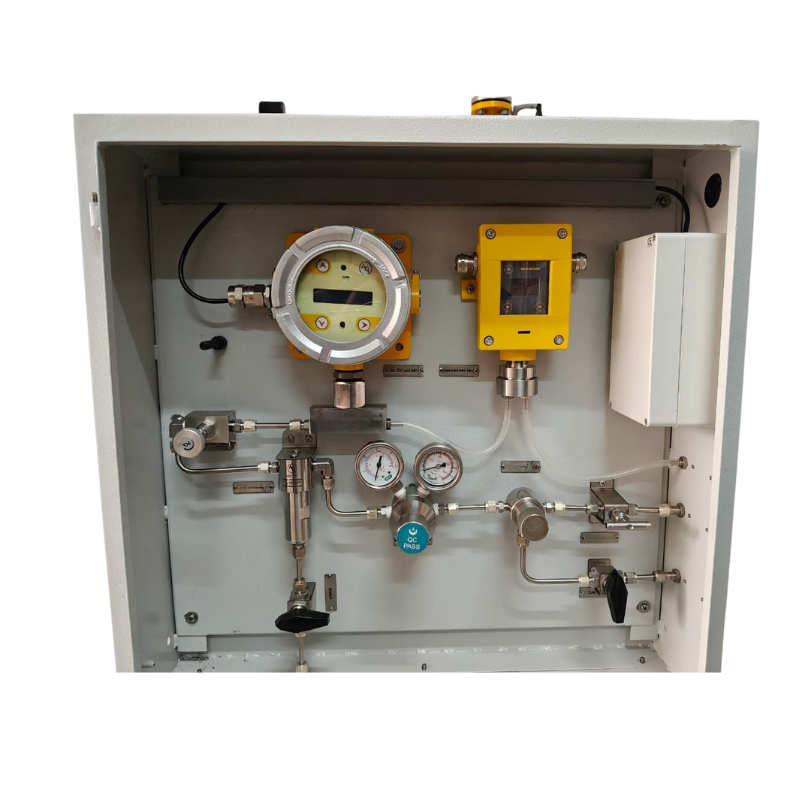

- Panel-Mounted Options: Available in multiple MOC’s like Stainless Steel, Mild Steel, CRCA & GRP to suit diverse operational needs.
- User-Friendly Interface: Intuitive touchscreen display with customizable alarms and data export capabilities.
CE Certified
ATEX Compliant
ISO 9001 Compliant
Performance & Operation
- Response Time: < 30 seconds (T90)
- Warm-Up Time: < 5 minutes
- Repeatability: ±1% of reading
- Drift: < 2% per month
- Calibration: Automatic zero calibration with solenoid valve; span calibration via certified gas
System Features
- Display: 5”–7” TFT LCD / Touchscreen with multilingual interface
- Data Logging: Internal memory, USB/SD card export, Modbus/Ethernet connectivity
- Alarm System: Configurable high/low alarms with LED indicators, buzzer, and relay outputs
- Power Supply: 230V AC ±10%, 50 Hz / 24V DC
- Communication: RS-485, 4–20 mA, Modbus RTU
Mechanical & Environmental
- Enclosure: IP65/IP66 rated panel
- Dimensions: Panel ~ 1200 × 800 × 250 mm
- Weight: 20–25 kg depending on configuration
- Operating Temperature: 0°C to +50°C
- Humidity: 10–90% RH, non-condensing
- Sample Conditioning: Integrated filter, moisture trap, optional gas cooler for high humidity samples, rotameter, optional digital flow meter
- Mounting Options: Wall or Floor mounted panel
- Certifications: ATEX, CE, PESO for Sensor and ISO 9001 for manufacturing standards
- Safety Features: Over-voltage protection, password-protected menu access
- Compliance: Meets environmental monitoring standards for biogas and landfill gas
Sensor Options with Multiple Ranges for Accurate Measurement of Process Gas
| Gas | Sensor Type | Range | Resolution | Accuracy |
|---|---|---|---|---|
| CH4 | NDIR | 0–100% V/V | 0.1 ± 2% | ± 2% |
| CO2 | NDIR | 0–100% V/V | 0.1 ± 2% | ± 2% |
| H2S | Electrochemical | 0–1000 PPM | 1 ± 2% | ± 2% |
| O2 | Electrochemical | 0–25% V/V | 1 ± 2% | ± 2% |
| NH3 | Electrochemical | 0–1000 PPM | 1 ± 2% | ± 2% |
| H2 | Electrochemical / Catalytic | 0–2000 PPM / 0–100% LEL | 1 ± 2% | ± 2% |
| CO | Electrochemical | 0–1000 PPM | 1 ± 2% | ± 2% |
| Dew Point | Capacitive Thin Film Polymer | -60 to +30 °C | 1 °C | ± 2% |
