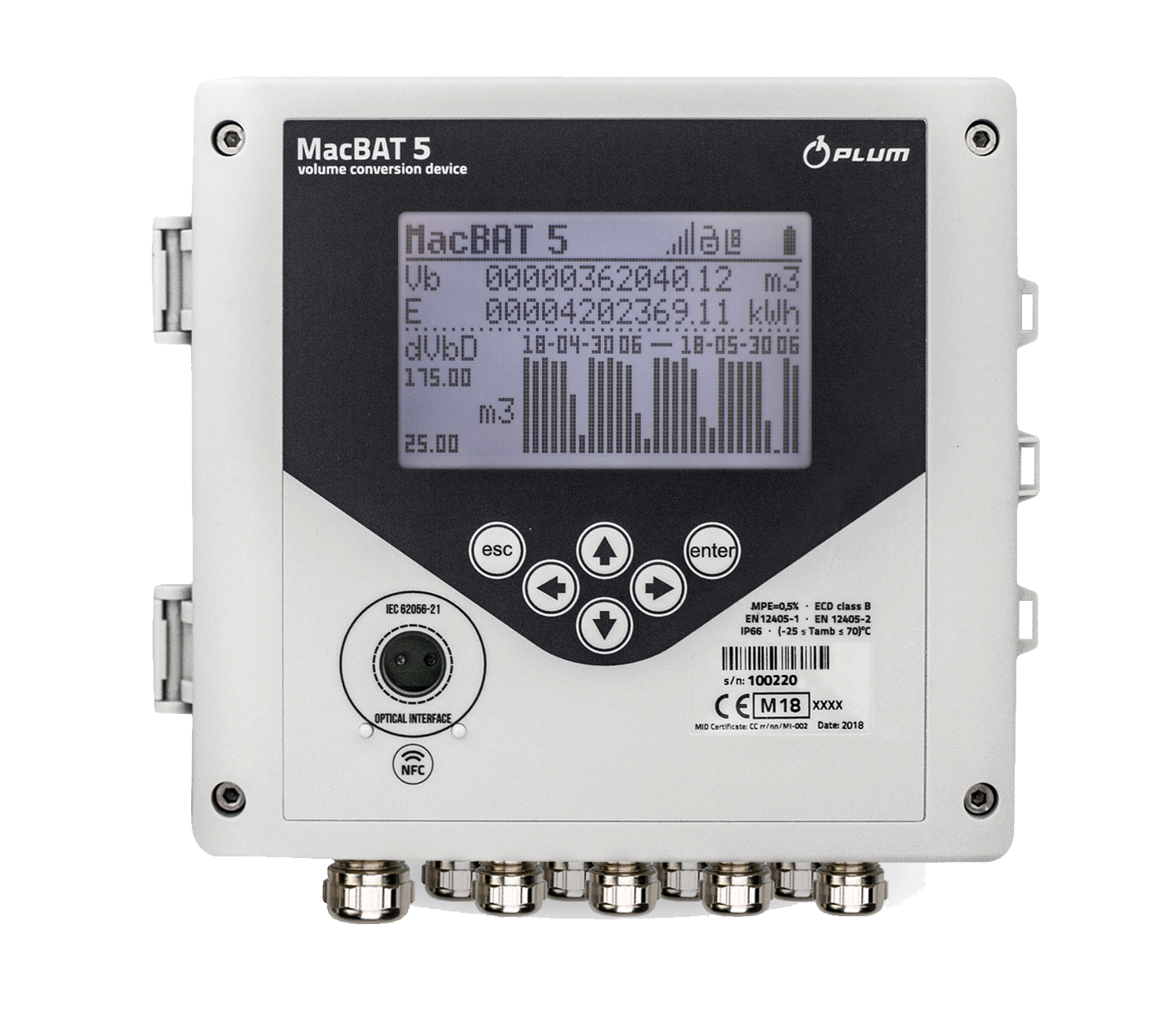

MacBAT 5 Electronic Volume Corrector
The MacBAT 5 is a next-generation electronic volume and energy corrector made for rotary, turbine and ultrasonic gas meters. It gives precise conversion to base conditions, easy data communication and safe installation in hazardous zones. This device is compact, reliable and built for modern gas networks.
Main Functional Characteristics
- Built-in 4G LTE modem for remote data access and integration
- Reverse flow detection and compensation to prevent measurement errors
- Real-time measurement every second with high storage capacity
- Certified compressibility algorithms for natural gas, hydrogen blends and biomethane
- Intrinsically safe design for Zone 0 installations (ATEX/IECEx certified)
- Works up to 14 years of maintenance-free battery-powered operation
- Supports Modbus and other communication standards for SCADA/IoT systems
ATEX / IECEx Certified
MID Certification
The MacBAT 5 is a compact intrinsically safe electronic corrector that mixes precision measurement with strong communication features. It uses built-in sensors (LF, HF, Encoder, Wiegand) to calculate compressibility with advanced algorithms (SGERG-88, AGA-92, NX-19-mod, K₁) and gives accurate correction to base conditions.
The device has reverse flow detection, second-by-second sampling and up to 10 years of storage capacity. It comes with an LTE modem, NFC and Modbus interfaces for easy SCADA or data system integration.

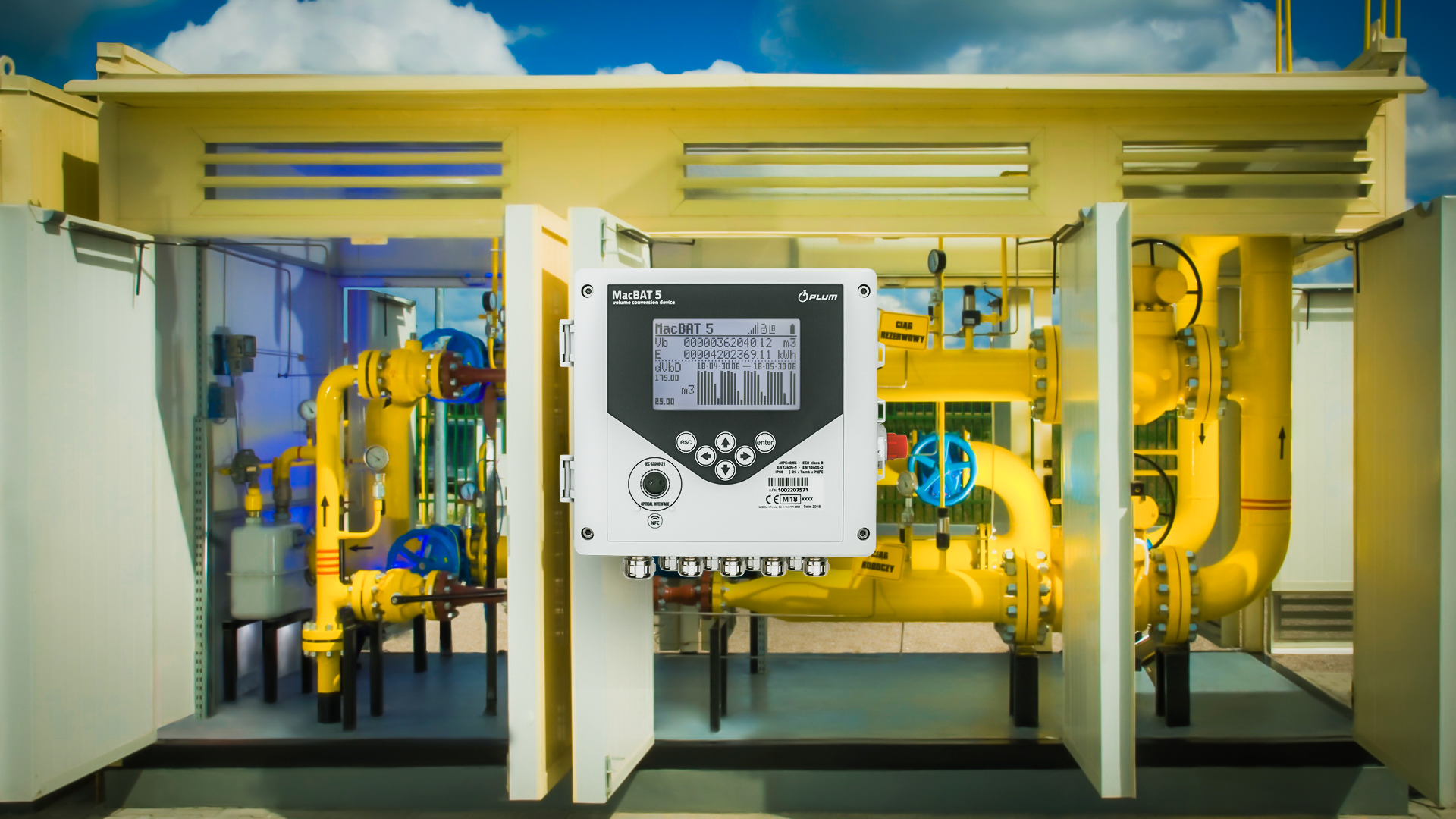

The long battery life, IP66 protection and rugged housing make it suitable for urban networks and remote outdoor installations.
- MID Certified – EU Measuring Instruments Directive
- ATEX / IECEx Approved – safe for Zone 0 hazardous areas
| Parameter | Specification |
|---|---|
| Dimensions / Weight |
Version 1: 207 × 194 × 77 mm / 1.3 kg Version 2: 202 × 167 × 93 mm / 3.5 kg |
| Enclosure Rating | IP66 – suitable for outdoor installations |
| Ambient Temperature | –25 °C to +70 °C |
| Relative Humidity | Max. 95% at 70 °C |
| Display | 4″ graphical backlit display |
| Power Supply | Lithium battery, size D, 3.6 V / 17 Ah, 5-year operating time (extendable up to 14 years depending on use) |
| Gas Meter Compatibility | Rotary, Turbine, Ultrasonic (LF, HF, Encoder, Wiegand) |
| Compressibility Algorithms | SGERG-88, AGA-92 DC, AGA-8 G1/G2, NX-19-mod, SGERG-mod H₂, Fixed K₁ |
| Communication Interfaces | 2×RS-485/RS-232, Optical IEC 62056-21, NFC, Integrated 4G LTE modem |
| Supported Protocols | Modbus RTU, Modbus TCP (with modem), Modbus RTU Master, GazModem 1/2/3 (others on request) |
| Memory Capacity | 10 years of data storage |
| Safety Ratings | ATEX: II 1G Ex ia IIB T4 Ga (with internal battery) |
